Won’t even pop with premix added to spark plug hole. Which tells me it’s possibly not getting spark. That said, turning it over with plug held against frame its definitely getting spark.

Do you get a spark with the plug grounded to the head/engine rather than frame?

The 86-87 three wire sender is mated up to an electrically different gauge than the 84-85 Sprees.
Thus the sender/gauges only function correctly as a matched set.

It is possible to wire the late sender to the early gauge, but IRC the following:
The early Spree gauge will read 2/3 to 3/4 Full when ...

Here's the wire color to relay pin connections:

.------------.
/ Relay /|
/ / |
Locking Tab Side Up ---> / ** / /
.-----**-----. /
Red ------------------- | -- -- | / -------- Yellow/Red Stripe
Red/White Stripe ------ | -- -- |/ ------- Green/Yellow Stripe
'------------'

When oil drains down past the check-ball in the oil pump, what is the proper way to remedy the problem, considering you want to retain the pump in use ?
Pull the check valve (it's a light press fit)
1) Spray from the pump side w/carb cleaner.
Post cleaning test:
Connect the pump side of the ...

GVWR is on the VIN Tag. Look at the frame tube just behind the front fork.

Good barn find - happy riding!

From the relay harness when key is on I get 11.6 volts to 1 prong and when I squeeze brake I get 10.2 volts to prong directly next to it and when I press start button I get nothing ...
There is no listed spec on the minimum relay 'pull-in' voltage, but I tested one on the bench a long time ago ...

I have replaced the starter Relay with a brand new one. Put test light on it and 2 of the prongs get Juice
There should be +12v on 3 prongs of the relay with the ignition "ON", brake lever pulled and start button activated.

Take a look at the marked up diagram. The green is good from what you ...

I have a 1985 honda spree.
We need a new fuel petcock but need to know what the size of the thread is on the tank.
Thanks a bunch in advance!
It's a good idea to measure your threads. After almost 40 years, previous owners may have swapped in a different tank.

OEM Spree petcock threads:
Honda ...

In your photo the center pulley is the early Spree. The pulley on the left of your pic is the newer one.

Check out noiseguy's thread detailing pulley differences and mods between 84/85 Spree vs 86/87 Spree and SB50.
http://hondaspree.net/phpBB3/viewtopic.php?t=998

Most everything covered on this board had an electrical actuated cold start system. I know little about Melody scooter models,
but in searching have found cable and vacuum operated systems were present on various Melody models.

A photo of your carb and associated connections may be of help to ...

[quote]I've been able to connect with Chevyguyjay on the facebook page for the TG50M Gyro S.[/quote]
Have not been active on FB in years - but I'll give him a shout there.

Your link is vital for parts searchers and sellers here too

My question is what type of oil do I put in the white container near where the battery is located?

Injector oil - For example, Honda GN2.

10/40 goes in the transmission.

Super looking build chevyguyjay

Glad you posted this motormike

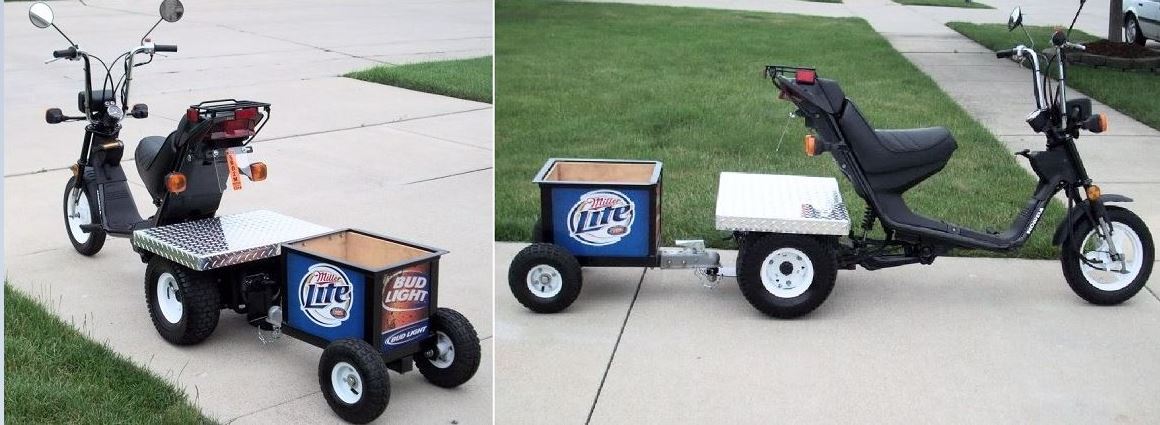

Chevyguy's pics seem to be lost (photo hosting issues), but I had a few of his TG50 flatbed and trailer. Great project!

Hi Motormike,
I looked over the NN50 rear, and remembered why the plastic is off. It was to show a member how the bystarter wires are routed over the air filter box. The wires are still pulled away from their hold downs.

There's one cover we have that has a melted spot too. It came that way so I ...
