Someone sketch an oil pump plug blueprint?

[dustyattic]

Would someone with an aftermarket oil pump hole plug want to sketch a drawing? I have bar aluminum and a lathe. I was thinking of making a replacement toothless pump shaft to go in the pump, but if I'm going to make a part, I might as well make the whole plug.

Dimensions in decimal inch preferred.

Thanks

[Trafficjamz]

give me bit and i'll post a pic.

[Trafficjamz]

Good luck

[dustyattic]

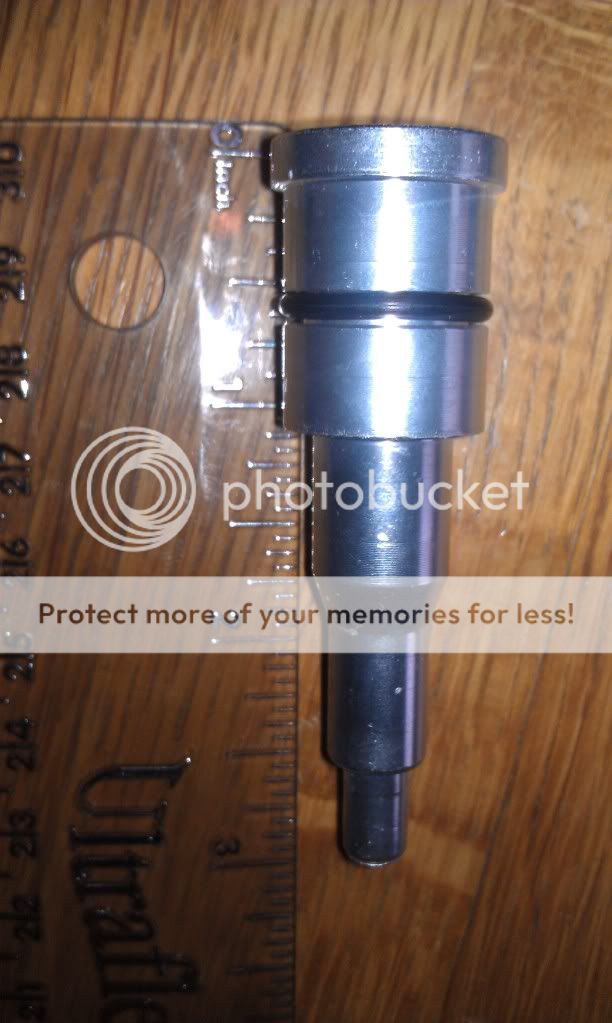

Thanks for the pic, I see it's about 3 inches long, but for a proper fit, I need the exact diameters and lengths.

If you or anyone with a plug has a micrometer handy, could you list the diameter and length of A thru G? Diameter not needed on E obviously.

Thanks.

[dun rite]

would think you could get the dimensions from the pump.?

A: 0.177 x 0.888
B: 0.370 X 0.785
C: 0.892 X 0.785
D: 0.575 X 0.548
E: 0.223
F: 0.574 X 0.409
G: 0.422 X 0.273

I will assume no liability for measurements that are not quit right. My calipers are not the best Best wishes

[dustyattic]

Thanks for the specs. Maybe I'll make 2 or 3 while I'm at it and give them to someone here needing them for good karma.

[dun rite]

there is a slight chamfer on F at the G change. the "o" ring slot is 0.628 dia. x 0.118 width.. overall length is 2.859. not sure if the dim. I gave you add up to that exactly or not.
