noob wondering what i have

[ss421]

And the jug and head are square not round if that helps at all....

[eliteguy50]

Measuring the crank shaft diameter would be undeniable proof as to which engine you have.

[ss421]

Ok so i measure from where to where????

[eliteguy50]

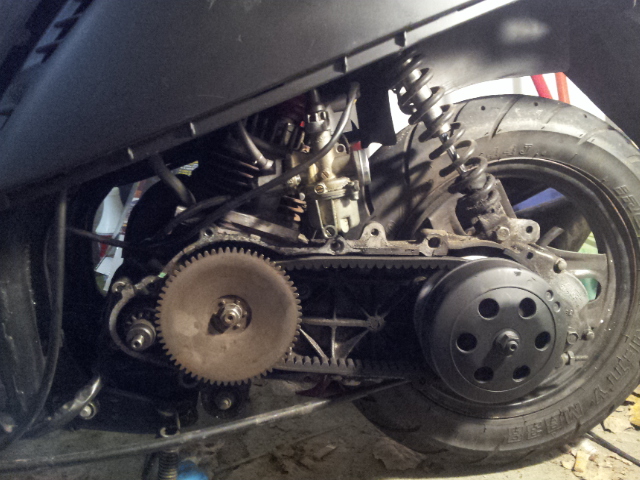

Remove the kickstart cover. The front shaft that the belt goes around is your crankshaft. Measure the diameter of the end of the shaft.

[Wheelman-111]

Greetings:

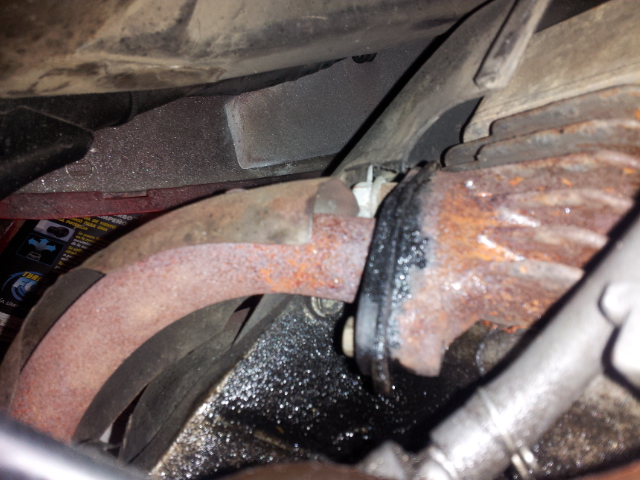

Don't overthink this, Dawgs. Yes some Japanese AF05s came with the split belt cover, but otherwise the most visible distinction is the exhaust flange. If it points straight ahead, it's a SA/16. If it angles to the right, it's a SE/05. Evidently your engine's been modified extensively either way, but unlikely the P.O. Could get swap a cylinder from one to the other. Bolt spacing is different.

[ss421]

Do i have to remove the starter sproket ???

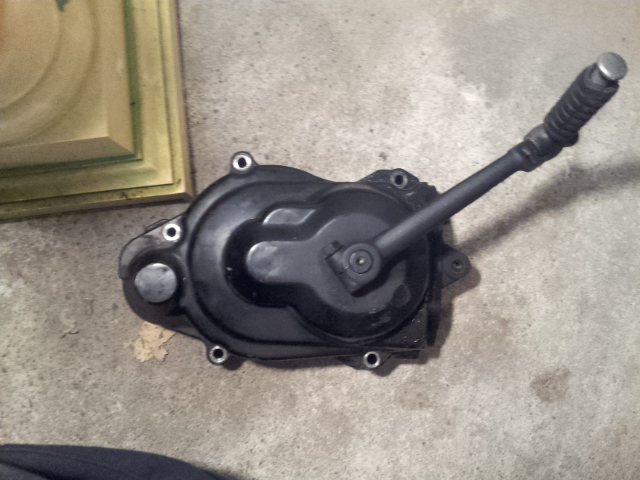

And yes there is a bolt on the back part of the kick start cover...and i don't think that is stock airbox upon removal it was held on by zip ties

[ss421]

.

[ss421]

If i can do it like as if i was taking of a power steering pump off a car and wrapping string around it and measuring the string it is 2 1/2 inchs... hope that helps if not just let me know

[ss421]

.

[LMH]

Neat you have an arrow pipe for an af05e, I also didn't know they had split covers for the kicker on some.

[Wheelman-111]

Greetings:

It's curious that the previous owner of a 1995 SA50 went against Common Wisdom:

Dude! He swapped OUT the Dio!!

[eliteguy50]

Imported af05 explains the pipe.

[ss421]

The crank shaft diameter is 2 1/2

[eliteguy50]

That is the circumference, the diameter is the distance straight across the shaft at its widest point:

http://www.beevo.com/images/Measure%20W ... ameter.jpg

[eliteguy50]

I need to check my math because I get a 20mm diameter from a 2.5" circumference.
