Gy6 150 simple harness info please

[12gauge]

Someone please post good layed out pic of this harness or simple diagram of how to wire gy6 150 to run and have electric start that's it please help I know none of you care about 4t s*** but I know a lot of you are good with these things Chopin harnesses for racing or drag

[mousewheels]

----

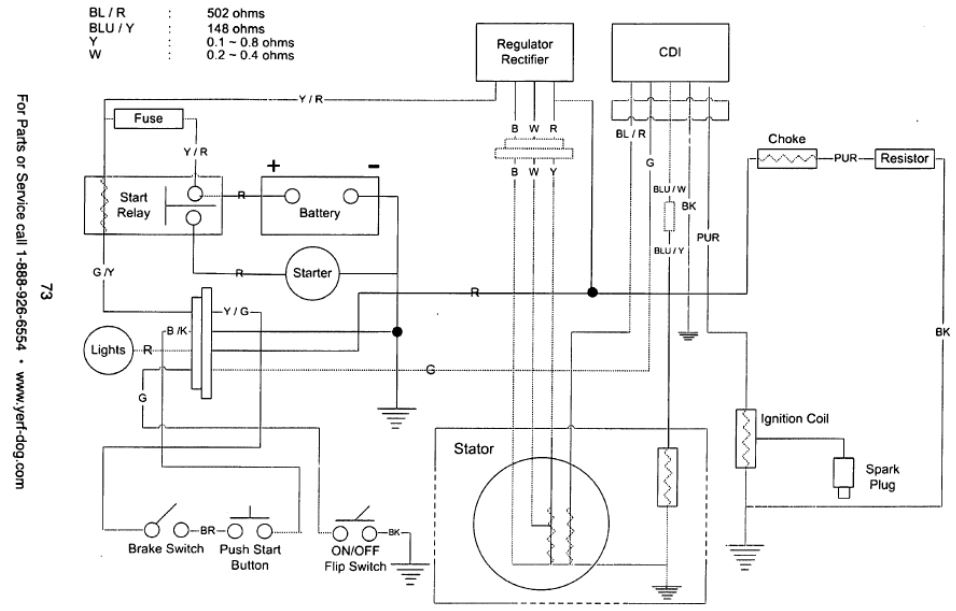

Simplified diagram from Yerf Dog 150cc GY6 ATV. It would be a good idea to double check with your own GY6 electrical diagram.


Original Yerf Dog diagram


-- Pictorial ignition connection diagram from the 'net


[12gauge]

Sorry about that was going on house arrest and wanted to figure out ASAP. So does the yellow go to positive on battery for trickle charging or white ?

[mousewheels]

So does the yellow go to positive on battery for trickle charging or white ?

--
Scroll up, the un-modified "Yerf dog" diagram does just what you want --

• E-start
• Battery charge
• Ignition

Connect both the yellow and white wires to the regulator per diagram. Omit the "LIghts" and "Choke" + Resistor from the diagram if still being minimalist.

Yet if it's a daily driver below 70 degrees or so, leaving the "Choke" (Bystarter) and resistor in will still be clean looking. All all components can be nearby the engine/stator.

[12gauge]

I am gettin oko 28 with pull choke
