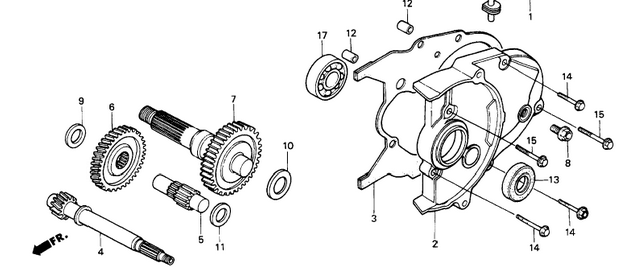

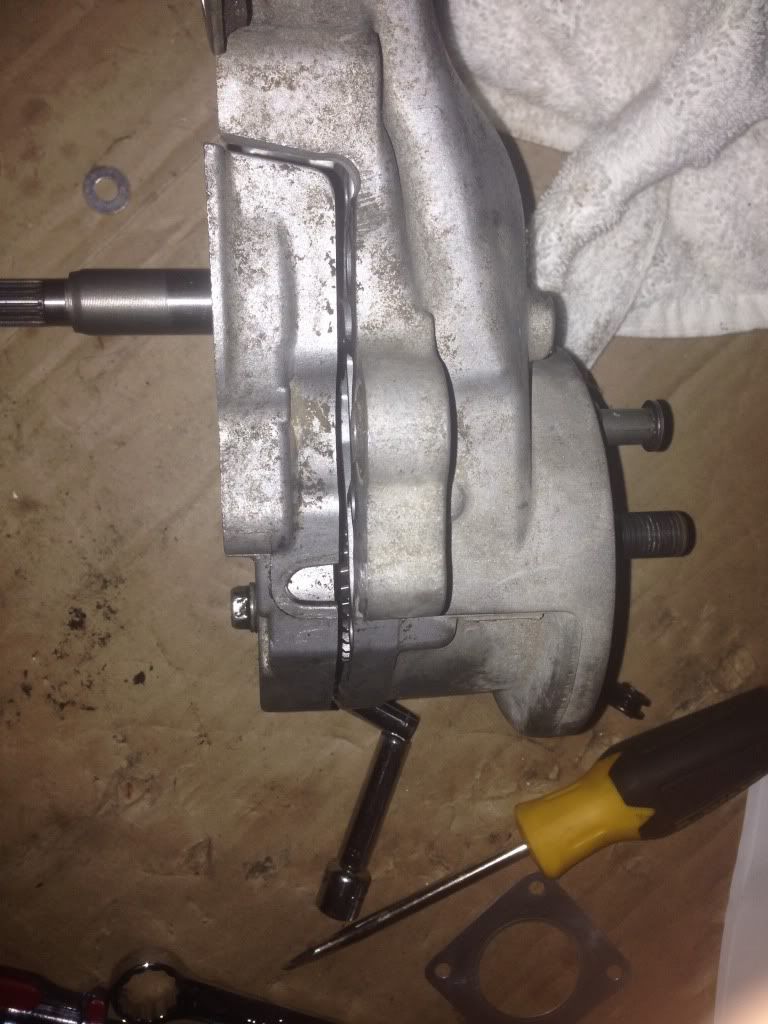

Well I went and got my new 8.44 gears pressed on and I am having some trouble installing them. The rear transmission cover isn't able to seat fully and it seems as if someone is blocking it from going all the way down. There's some pictures below so hopefully you guys can help me determine what's wrong. I included some pictures with description just to make everything more clear. I noticed that #7 (final shaft) is sitting a bit higher than #5 (counter shaft). Due to that, #11 (thrust washer) wasn't able to be seated properly. Due to that, I placed the metal washer in the rear and the plastic washer up front. So for clarification I have washer #9 as the metal washer and washer #11 as the plastic washer. From a first glance, I was guessing that maybe the guy at the shop didn't press the gear on the final shaft down far enough which was causing issues. But I looked and I don't see how that would be possible. Seems like its seated all the way down. This is the last puzzle to my build before I can get the engine put back onto the frame so I really want to get this settled. Thanks guys. I can take extra pictures of explain things in more detail to help clarify if need be. Thank you!

[LMH]

Take out one washer at a time and try to re tighten it will let you know where it's hung up at.

[bfowler]

Take out one washer at a time and try to re tighten it will let you know where it's hung up at.

I don't think it has anything to do with the counter shaft. I took it out and tried to install the cover with only the final shaft in and it won't go. Just can't figure out what's wrong with the final shaft.

[Downsouthdio]

I think theres is just those 2 washers 1 being plastic..try n turn that gear the clutch goes on (easily) back n forth (left to right) while easily pushing to fit it flush..sometimes it'll bind up..just giving my 2 cents goodluck and take ur time..! You havent changed the gear cover for that motor right?

[bfowler]

Same gear cover. And rotating didn't work, thanks though downsouthdio. My only guess is that the bearing where the final shaft inserts into is somehow not pressed all the way in. Not too sure how that would happen. Perhaps it came unseated when the case was in the oven. When I look at the bearing it looks like it's all the way in though. Doesn't look like there's any room for it to go in further when I look at it from where the rear brake is.

[bonesv]

Is the gear pressed all the way on the axle? Have you changed any bearings that might not be seated all the way? What brand of secondaries are they?

[bfowler]

Seems as if the gear is pressed all the way on. When I insert it into the transmission cover it sits fully in there. So I'm pretty sure it's all the way on. Honestly now that I think more about it, the only thing it could be is the bearing not being seated all the way down in the case. I just can't figure out how that would happen unless it somehow unseated when the case was in the oven so I could get the crank bearings in. And I don't want to have to replace it because then id have to order all new bearings and seals for the third time. Since id need to heat up the case to get the bearing in. Meaning id have to split the case again, all new crank bearings, oil seals, and a new bearing and oil seal for the final shaft ):

[paulpauly7]

remove all the gears does it seat then? check the dell holes arnt gummed up and that the dells line up .

[bfowler]

Cover seats when I remove the counter shaft and final shaft. Also seats when I have the counter shaft in but remove the final shaft. Basically seats in every situation as long as the final shaft isn't in. All signs pointing me to final shaft.

[paulpauly7]

yip sounds like it to me

[bfowler]

Anyway to check if the bearing is fully seated that the final shaft inserts into? Just from a visual check it looks like the bearing is all the way in. It's the only thing I can think of causing this problem. I think the final shaft isn't being inserted fully into the case causing it to prevent the gear cover from seating. Just so people aren't confused since I know it can be hard to grasp, bearing I'm referring to is number 17 in the picture above.

[spreeinkc]

I usually just find a socket with the same diameter as the outer edge of the bearing, lay the cover flat and place socket directly over the bearing (so the socket is only applying pressure to the outer ring of the bearing, and then tap on it with a hammer. Shouldn't take much force as long as it's (the bearing) not in a bind, then you might have to tap it a little harder. As long as the socket is only pressing on the outer ring of the bearing you won't hurt it.

Also (I would think) you should be able to pull that seal out and see if there is a gap between the case and the bearing.

[bfowler]

I guess my next question is how can I remove the seal without damaging it so I can reuse it? Want to give the bearing a couple taps to make sure it's fully seated.

[paulpauly7]

put the shaft in and tap the end of the shaft

[bfowler]

put the shaft in and tap the end of the shaft

Hey Pauly not sure what you mean by that. Could you explain? Thanks.
