Aggresive port work on big stroker setup

[Spooneg6]

Anyone have any pics of aggresive porting done to block and cylinder ? I honestly dont care about mild port pics , i know people have diffrent kinds of port methods on the block by the intake inlet , id like to see pics of super aggresive porting just so i can get an idea of what route i will take when i take my motor apart again im a month pics would seriously be a big help especially since i am going to rejet rite after which i know is a must

[whitey]

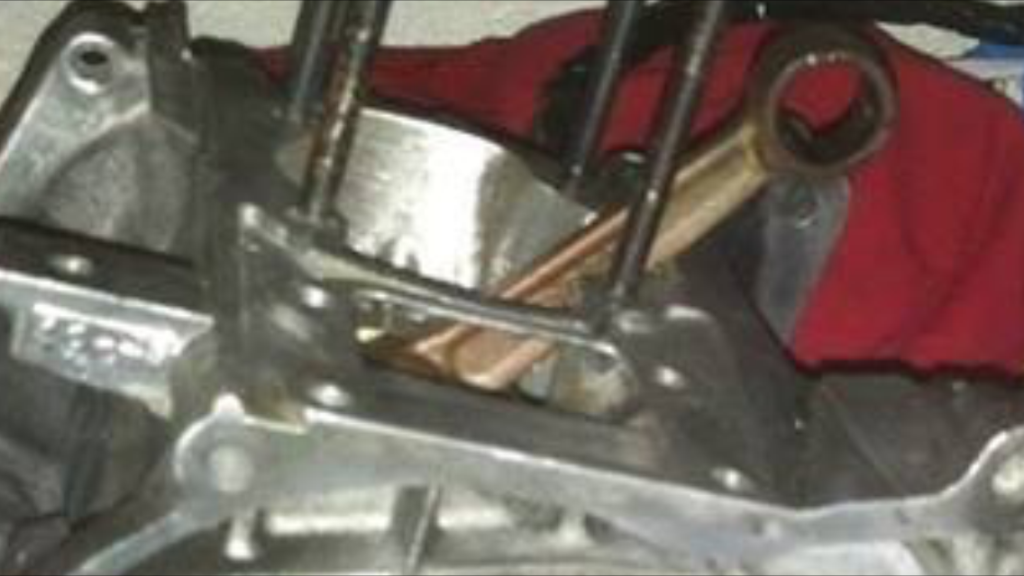

Not mine, something I found on the webs.

[DirtyE]

This is kind of a hard question to answer. Stroker cylinders will vary in port layout, so aggressive porting on one maybe mild on another. When you port your cylinder its to best match your pipe. A cylinder is easier for most to tune and its fairly straight forward. Tools required are a dremel, calipers and a steady hand. Tuning a pipe requires welding and rolling.... all sorts of other tools and sharper skills. A steadier hand.

The best thing you could do would be to take measurements of your cylinders ports, maybe even post a port map. Either myself or anyone that I emailed the porting calculator to could help you get your timings dialed in.

The above is for porting a cylinder. If you're talking about porting your cases than there are several threads here with pictures of ported and flowed cases.

[swimmingfree]

if you remove the peace in the middle of your case you it will became a place for a air to get in the motor and make it run leen...
swimmingfree

[Wheelman-111]

Greetings:
